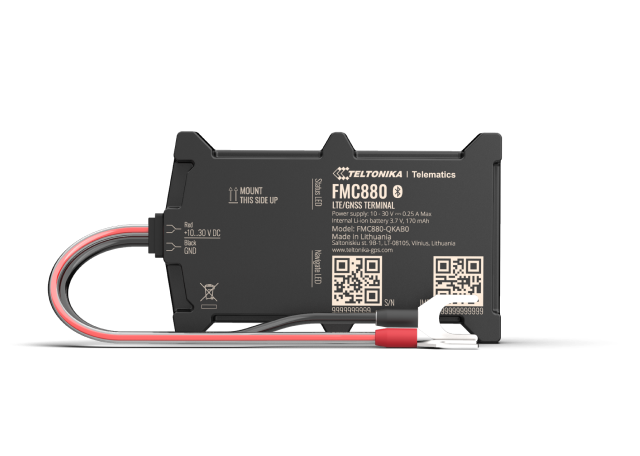

Module

• Name | FMC880-QJAB0: Quectel EG915U-EU with AG3335 | FMC880 – QKAB0: Quectel EG915U-LA with AG3335
• Technology | LTE CAT 1 / GSM / GPRS / GNSS / BLUETOOTH

GNSS

• GNSS | L1: GPS, GLONASS, GALILEO, BEIDOU, SBAS*, QZSS* | L5: GPS, GALILEO, BEIDOU
• Receiver | L1: 75 channel | L5: 60 channel
• Tracking sensitivity | -165 dBM
  • Position accuracy | < 1 m CEP
• Velocity accuracy | < 0.1 m/s (within +/- 15% error)
• Hot start | < 1 s
• Warm start | < 24 s
• Cold start | < 35 s

Cellular

• 2G bands | GSM: B2/B3/B5/B8
• 4G LTE bands | FMC880-QJAB0: LTE FDD (CAT 1): B1/B3/B5/B7/B8/B20/B28 FMC880-QKAB0: LTE FDD (CAT 1): B2/B3/B4/B5/B7/B8/B28/B66
• Data transfer | LTE FDD (CAT 1): Max. 10 Mbps (DL) / Max. 5 Mbps (UL) GSM (GPRS): Max. 85.6 Kbps (DL) / Max. 85.6 Kbps (UL)
• Transmit power: Class 5  for GSM850/900: 30±5dBM | Class 3 for GSM1800/1900: 29±5dBM | Class 3 for LTE-FDD: 26±5dBM | Bluetooth: 5.54±2dBM | Bluetooth LE: -4.26±2dBM
• Data support | SMS (TEXT, PDU), Network protocols (TCP, UDP, TLS, EGTS, MQTT)

Power

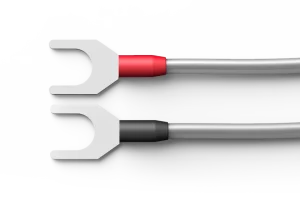

• Input voltage range | 10-30 V DC with overvoltage and reverse polarity protection
• Internal back-up battery | 170 mAh Li-Ion battery, 3.7 V (0.63 Wh)
• Internal fuse | 3A, 125V

Bluetooth

• Specification | 4.0 + LE
• Supported peripherals | Temperature and Humidity sensor, Inateck Barcode Scanner, Universal BLE sensors support

Physical specification

• Dimensions | 92.5 x 57.6 x 14 mm (L x W x H)
• Weight | 63 g

Interface

• GNSS antenna | Internal High Gain
• Cellular antenna | Internal GSM High Gain
• USB | 2.0 USB Micro B
• LED indication | 2 status LED lights
• SIM | Micro-SIM
• Memory | 128MB internal flash memory

Operating Environment

• Operating temperature (with battery) | 0 °C to +40 °C
• Operating temperature (without battery) | -40 °C to +85 °C
• Storage temperature (without battery) | -40 °C to +85 °C
• Storage temperature (with battery) | -20 °C to +60 °C
• Operating humidity | 5% to 95% non-condensing
• Ingress Protection Rating | IP65
• Battery charge temperature | 0 °C to +45 °C
• Battery discharge temperature | -20 °C to +60 °C
• Battery storage temperature | -20 °C to +45 °C for 1 month | -20 °C to +35 °C for 6 months

Features

• Sensors | Accelerometer
• Scenarios | Green Driving, Over Speed detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofance, Trip
• Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
• Configuration and firmware update | FOTA Web, Teltonika Configurator (USB, Bluetooth)
• SMS | Configuration, Events, Debug
• GPRS commands | Configuration, Debug
• Time synchronization | GNSS, NITZ, NTP
• Ignition detection | Accelerometer, External Power Voltage

Certification and approvals

• Regulatory | FMC880-QJAB0: CE/RED, E-Mark, RCM, REACH, RoHS | FMC880-QKAB0: Anatel, REACH, RoHS
