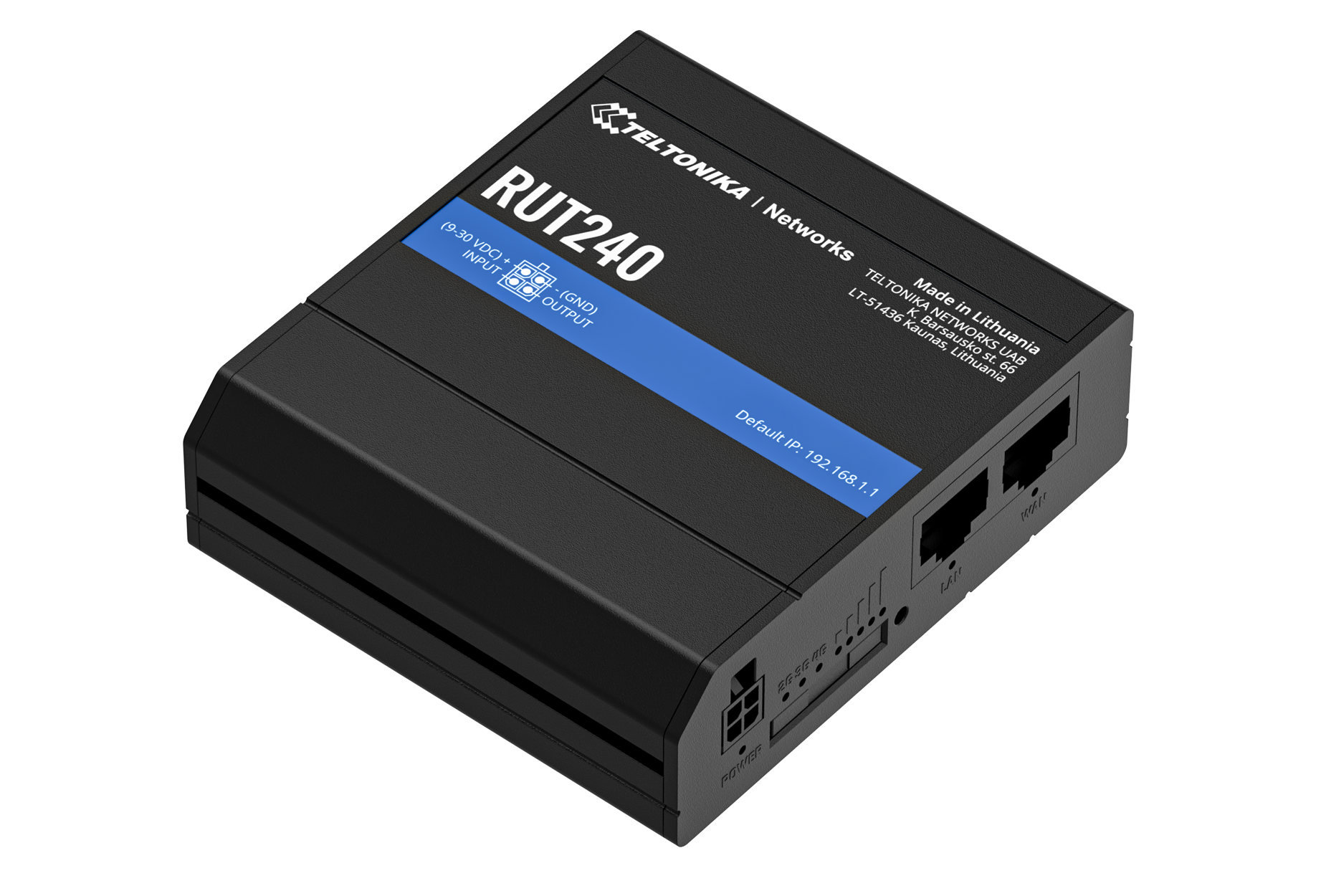

Teltonika RUT240
£149.00

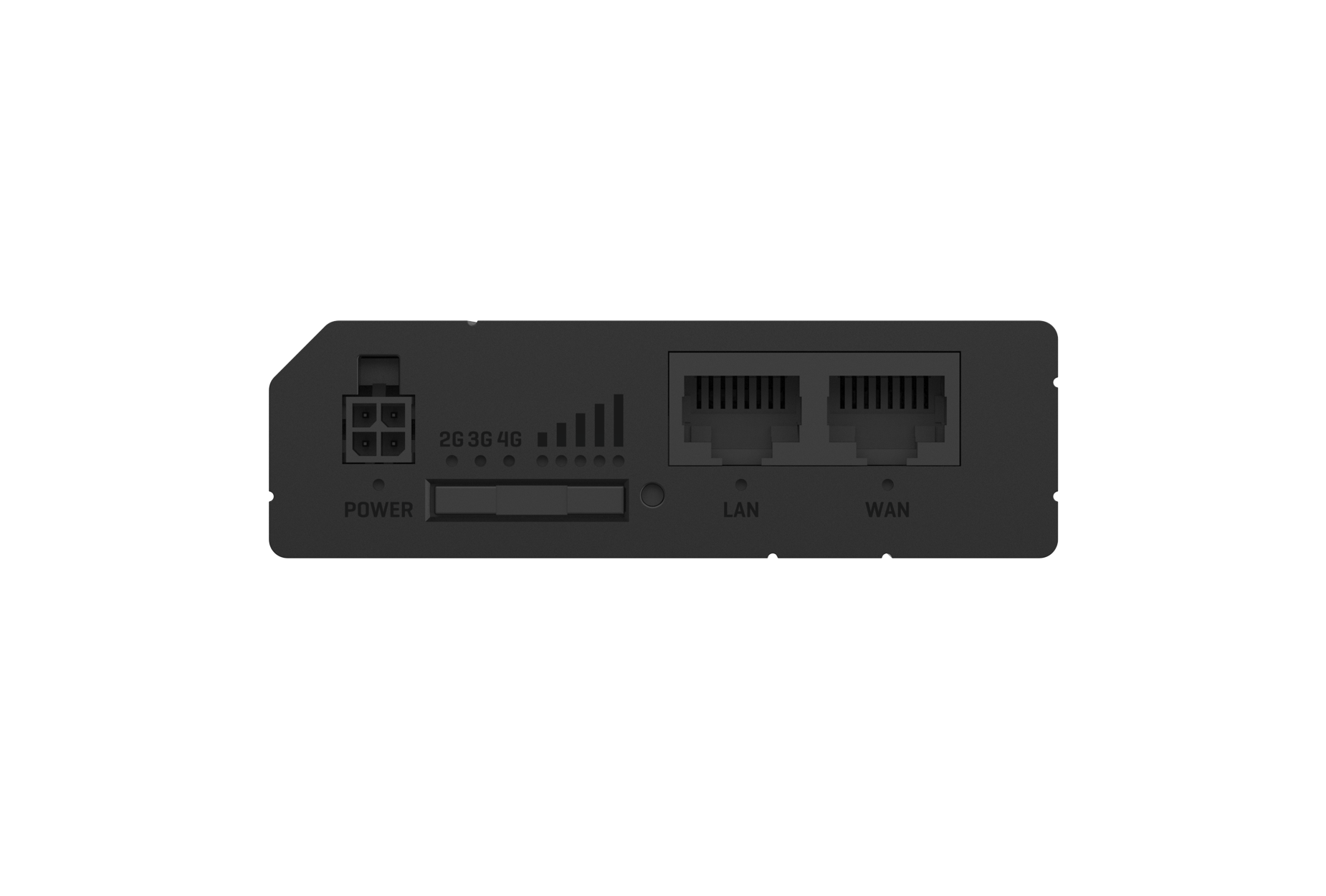

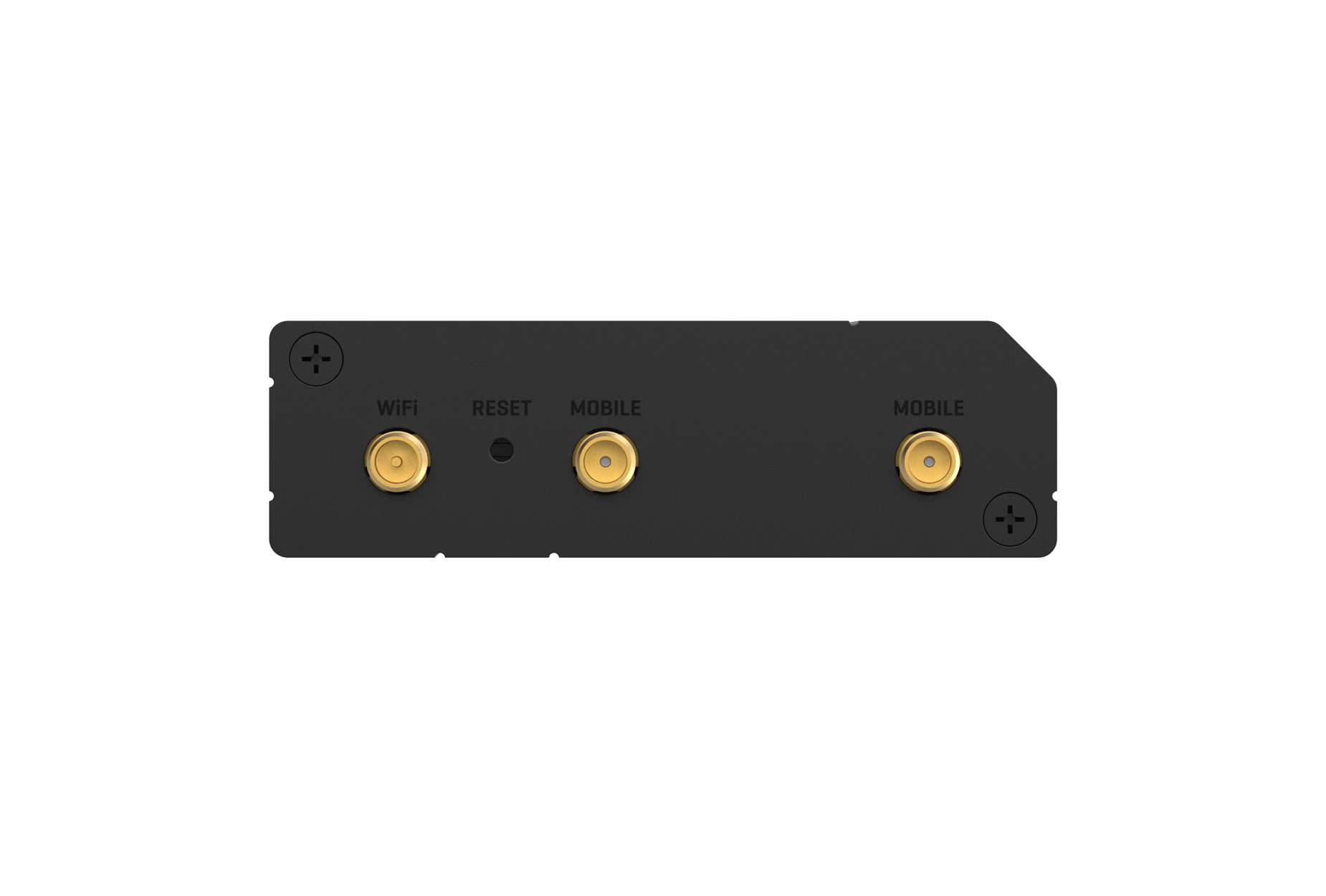

The Teltonika RUT240 is a compact, cost-effective industrial 4G LTE router with high performance for professional applications. It features an external SIM holder, signal strength LEDs, and external antenna connectors for optimal network management. When paired with the XPOL1 antenna from Poynting, it allows for sharing 4G connection at home. The directional XPOL-2 antenna is recommended for precise cell tower targeting.
Description
Teltonika RUT240 Features
Mobile
- Mobile module – 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
- 3GPP Release – Release 10/11 depending on the hardware version
- Status – IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
- SMS – SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
- USSD – Supports sending and reading Unstructured Supplementary Service Data messages
- Black/White list – Operator black/white list (by country or separate operators)
- Multiple PDN – Possibility to use different PDNs for multiple network access and services
- Band management – Band lock, Used band status display
- APN – Auto VPN
- Bridge – Direct connection (bridge) between mobile ISP and device on LAN
- Passthrough – Router assigns its mobile WAN IP address to another device on LAN
Wireless
- Wireless mode – IEEE 802.11b/g/n, Access Point (AP), Station (STA)
- Wi-Fi security – WPA2-Enterprise – PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation
- SSID/ESSID – SSID stealth mode and access control based on MAC address
- Wi-Fi users – Up to 50 simultaneous connections
- Wireless Connectivity Features – Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
- Wireless MAC filter – Whitelist, blacklist
Network
- Hotspot – Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes and option to upload and download customised hotspot themes
- Routing – Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
- Network protocols – TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)
- VoIP passthrough support – H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
- Connection monitoring – Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
- Firewall – Port forward, traffic rules, custom rules
- DHCP – Static and dynamic IP allocation, DHCP Relay
- QoS / Smart Queue Management (SQM) – Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
- DDNS – Supported >25 service providers, others can be configured manually
- Network backup – Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
- Load balancing – Balance Internet traffic over multiple WAN connections
- SSHFS – Possibility to mount remote file system via SSH protocol
Ethernet
- 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX
- 1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
Security
- Authentication – Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block
- Firewall – Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
- Attack prevention – DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
- VLAN – Port and tag-based VLAN separation
- Mobile quota control – Mobile data limit, customizable period, start time, warning limit, phone number
- WEB filter – Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
- Access control – Flexible access control of SSH, Web interface, CLI and Telnet
VPN
- OpenVPN – Multiple clients and a server can run simultaneously, 27 encryption methods
- OpenVPN Encryption -DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
- IPsec – IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
- GRE – GRE tunnel, GRE tunnel over IPsec support
- PPTP, L2TP – Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
- Stunnel – Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
- DMVPN – Method of building scalable IPsec VPNs
- SSTP – SSTP client instance support
- ZeroTier – ZeroTier VPN client support
- WireGuard – WireGuard VPN client and server support
- Tinc – Tinc offers encryption, authentication and compression in it’s tunnels. Client and server support.
