Description

Mobile

• Mobile Module – 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
• 3GPP Release – Release 10/11 depending on hardware version
• Status – IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
• USSD – Supports sending and reading Unstructured Supplementary Service Data messages
• Black/White list – Operator black/white list (by country or separate operators)
• Multiple PDN – Possibility to use different PDNs for multiple network access and services
• Band Management –  Band lock, Used band status display
• APN –  Auto APN
• Bridge – Direct connection  (bridge) between mobile ISP and device on LAN
• Passthrough – Router assigns its mobile WAN IP address to another device on LAN

Wireless

Network

• Hotspot – Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes and option to upload and download customised hotspot themes
• Routing – Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
• Network protocols – TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)
• VoIP passthrough support – H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
• Connection monitoring – Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
• Firewall – Port forward, traffic rules, custom rules
• Firewall status page – View all your Firewall statistics, rules, and rules counters
• Ports management – View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
• Network topology – Visual representation of your network, showing which devices are connected to which other devices
• DHCP – Static and dynamic IP allocation, DHCP Relay
• QoS / Smart Queue Management (SQM) – Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
• DDNS – Supported >25 service providers, others can be configured manually
• Network backup – Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
• Load balancing – Balance Internet traffic over multiple WAN connections

SSHFS – Possibility to mount remote file system via SSH protocol

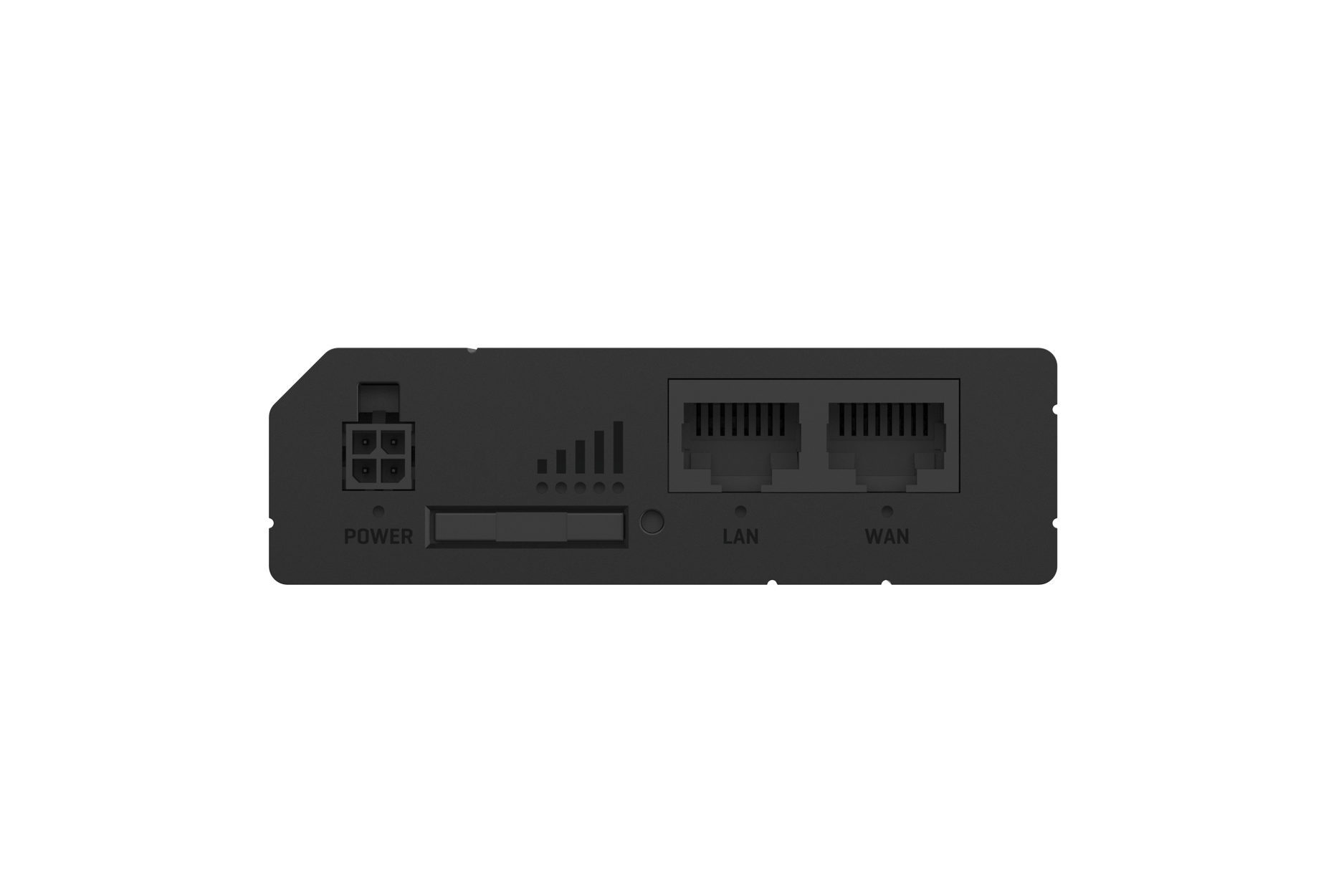

Ethernet

• 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX
• 1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

Security

• Authentication – Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block
• Firewall – Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
• Attack prevention – DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
• VLAN – Port and tag-based VLAN separation
• Mobile quota control – Mobile data limit, customizable period, start time, warning limit, phone number
• WEB filter – Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
• Access control – Flexible access control of SSH, Web interface, CLI and Telnet

VPN

• OpenVPN – Multiple clients and a server can run simultaneously, 27 encryption methods
• OpenVPN Encryption – DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
• Ipsec – IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
• GRE – GRE tunnel, GRE tunnel over IPsec support
• PPTP, L2TP – Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
• Stunnel – Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
• DMVPN – Method of building scalable IPsec VPNs
• SSTP – SSTP client instance support
• ZeroTier – ZeroTier VPN client support
• WireGuard – WireGuard VPN client and server support
• Tinc – Tinc offers encryption, authentication and compression in it’s tunnels. Client and server support.
