Teltonika RUT950
£208.00

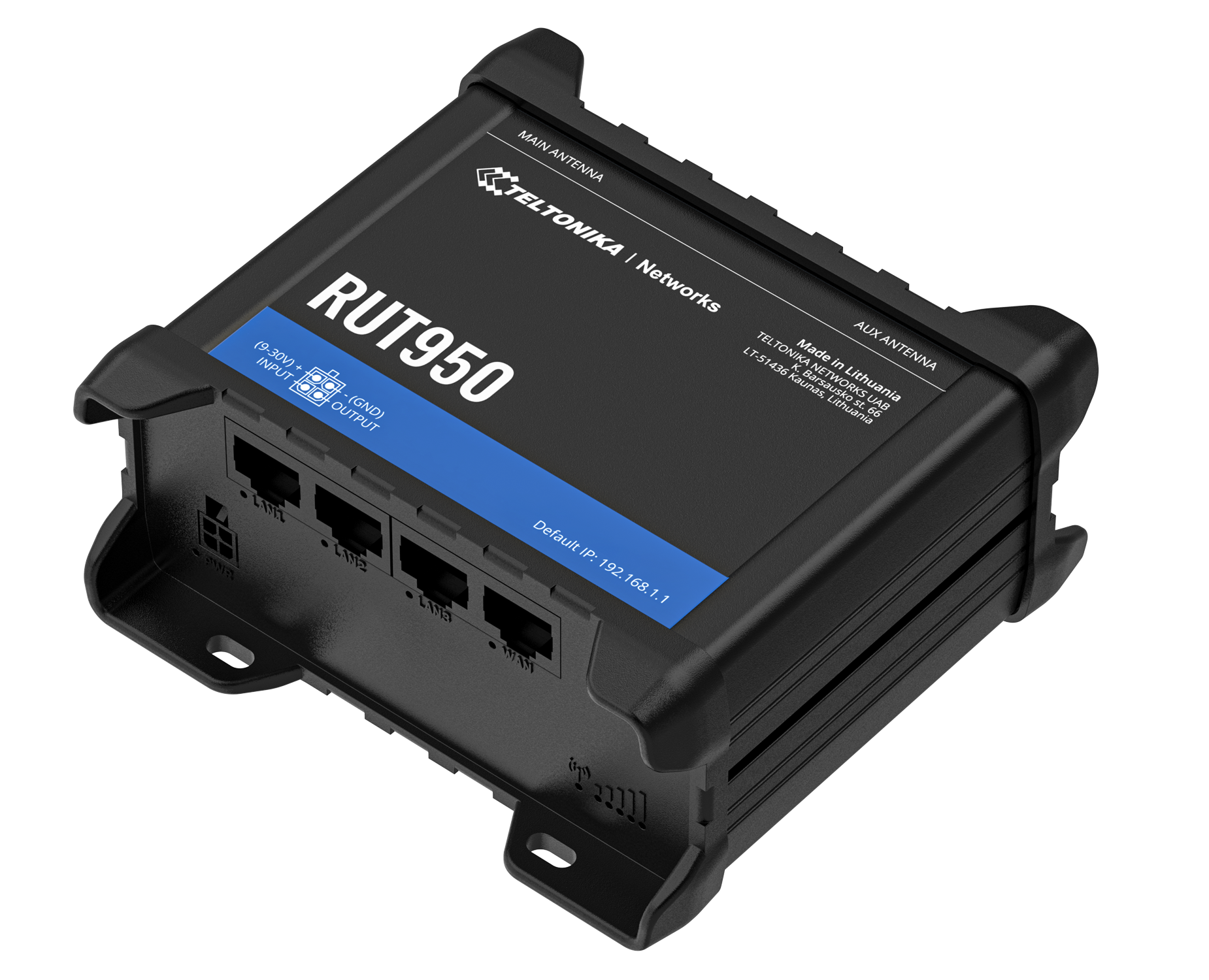

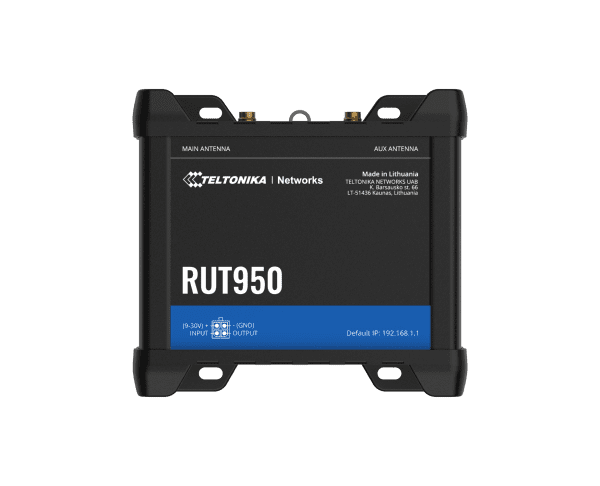

The Teltonika RUT950 is a robust industrial 4G/LTE WiFi router designed for IoT applications, providing high-performance cellular communication in tough conditions with compatibility for remote management through RMS for M2M and IoT networking. The router features four Ethernet ports, two SIM holders, digital input/output, signal strength LEDs, and external SMA connectors for antennas. It runs on RutOS, a unified OS for Teltonika routers, ideal for mobile networking. The Dual-SIM and 4G failover ensure business continuity. Paired with the XPOL1 antenna from Poynting this is an ideal kit to share your 4G connection around the home/office/site. If you are sure as to where the cell tower is then the directional XPOL-2 is a good alternative to consider.
Description
Teltonika RUT950 Features
Mobile
- Mobile Module – 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
- 3GPP Release – Release 10/11 depending on the hardware version

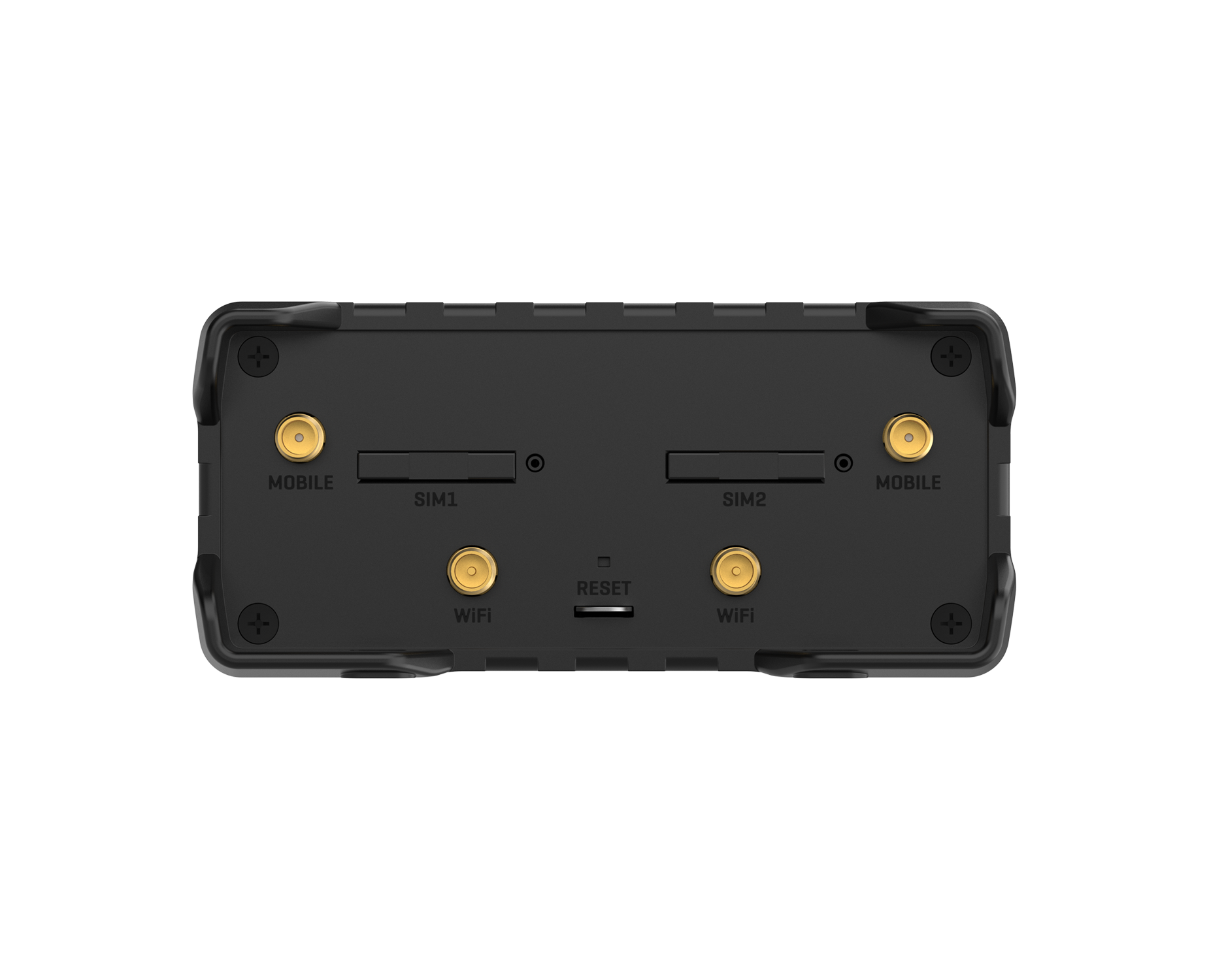

- SIM switch – 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
- Status – IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
- SMS – SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
- USSD – Supports send and reading Unstructured Supplementary Service Data messages
- Black/White list – Operator black/white list (by country or separate operators)
- Multiple PDN – Possibility to use different PDNs for multiple network access and services
- Band management – Band lock, Used band status display
- APN – Auto APN
- Bridge – Direct connection (bridge) between mobile ISP and device on LAN
- Passthrough – Router assigns its mobile WAN IP address to another device on LAN
Wireless
- Wireless Mode – IEEE 802.11b/g/n, Access Point (AP, Station (STA)
- Wi-Fi security – WPA2-Enterprise – PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation
- SSID/ESSID – SSID stealth mode and access control based on MAC address
- Wi-Fi users – Up to 100 simultaneous connections
- Wireless MAC filter – Whitelist, blacklist
- Wireless QR code generator – Once scanned, a user will automatically enter your network without needing to input login information.
- Wireless Connectivity Features – Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
Network
- Hotspot – Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes and option to upload and download customised hotspot themes
- Routing – Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
- Network protocols – TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)
- VoIP passthrough support – H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
- Connection monitoring – Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
- Firewall – Port forward, traffic rules, custom rules
- Firewall status page – View all your Firewall statistics, rules, and rule counters
- Ports management – View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
- Network topology – Visual representation of your network, showing which devices are connected to which other devices
- Hotspot – Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes and option to upload and download customised hotspot themes
- DHCP – Static and dynamic IP allocation, DHCP Relay
- QoS / Smart Queue Management (SQM) – Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
- DDNS – Supported >25 service providers, others can be configured manually
- Network backup – Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
- Load balancing – Balance Internet traffic over multiple WAN connections
- SSHFS – Possibility to mount remote file system via SSH protocol
Ethernet

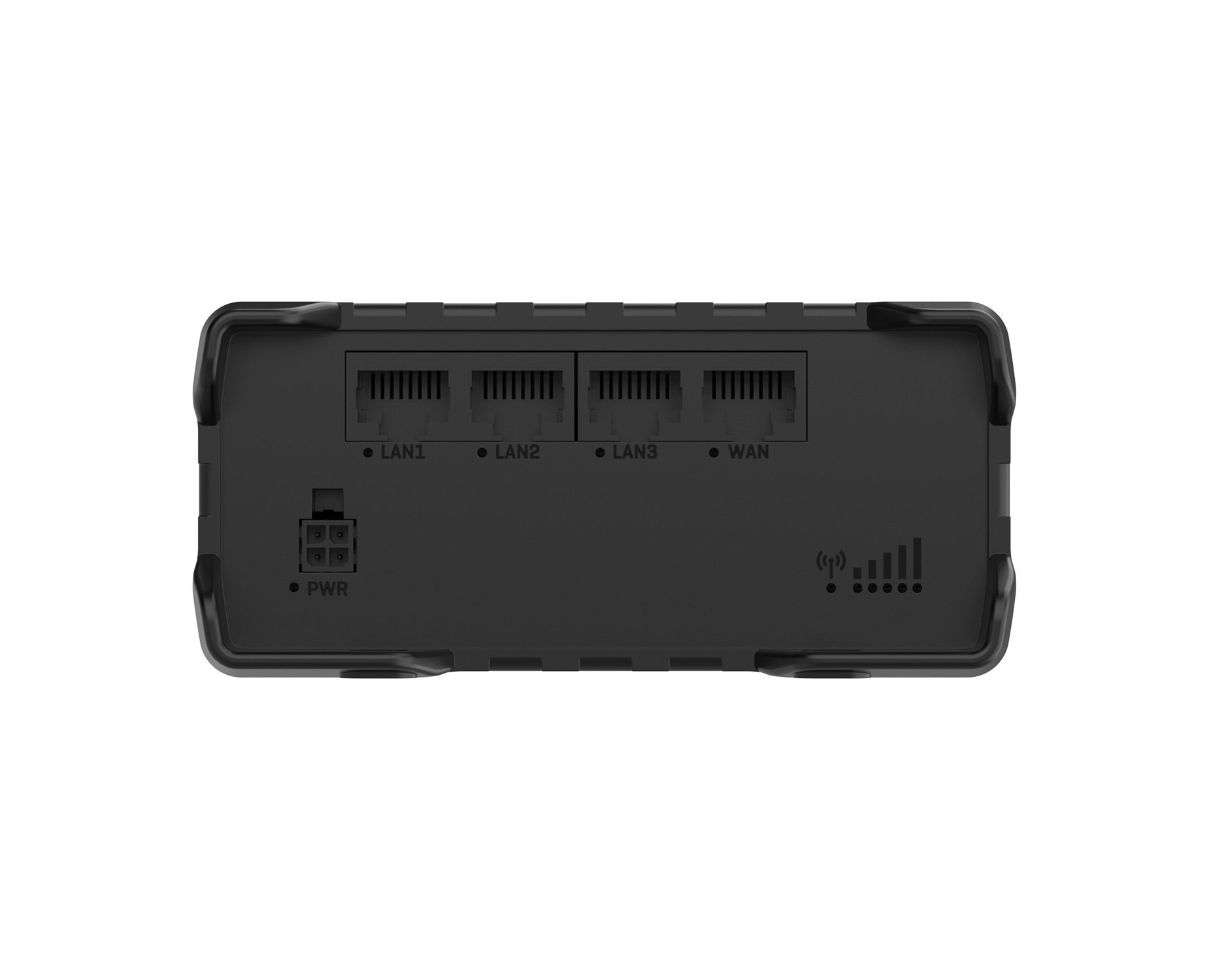

- 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX
- 3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
Security
- Authentication – Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block
- Firewall – Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
- Attack prevention – DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
- VLAN – Port and tag-based VLAN separation
- Mobile quota control – Mobile data limit, customizable period, start time, warning limit, phone number
- WEB filter – Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
- Access control – Flexible access control of SSH, Web interface, CLI and Telnet
VPN
- OpenVPN – Multiple clients and a server can run simultaneously, 27 encryption methods
- OpenVPN Encryption – DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
- IPsec – IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
- GRE – GRE tunnel, GRE tunnel over IPsec support
- PPTP, L2TP – Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
- Stunnel – Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
- DMVPN – Method of building scalable IPsec VPNs
- SSTP – SSTP client instance support
- ZeroTier – ZeroTier VPN client support
- WireGuard – WireGuard VPN client and server support
- Tinc – Tinc offers encryption, authentication and compression in it’s tunnels. Client and server support.
