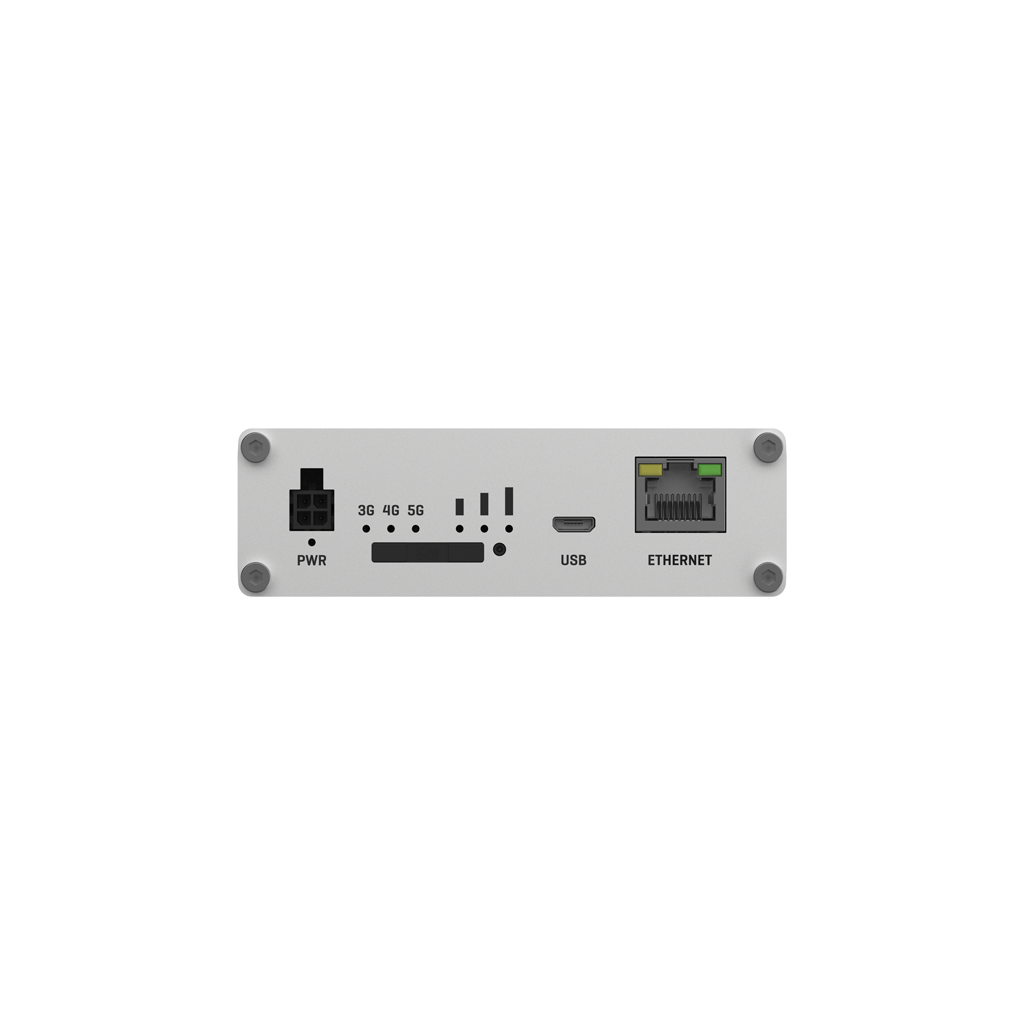

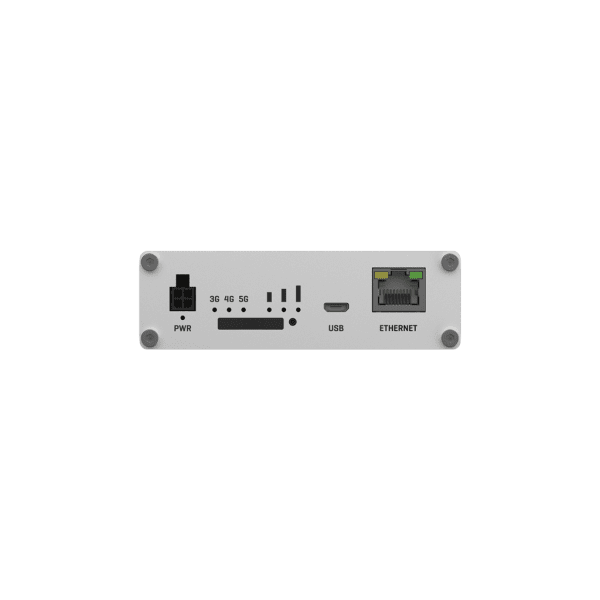

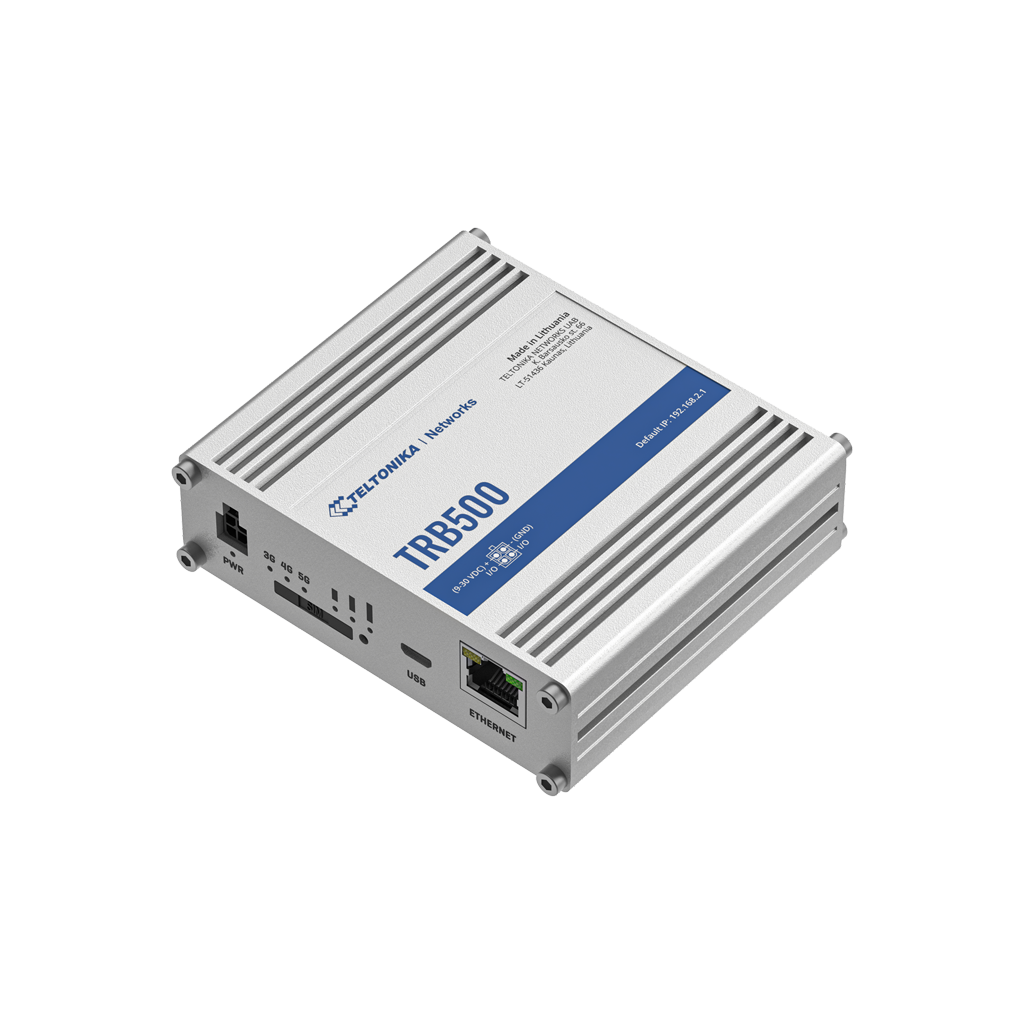

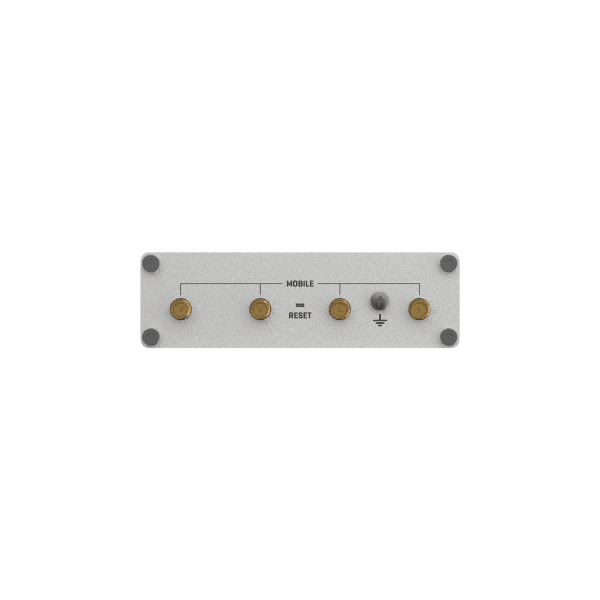

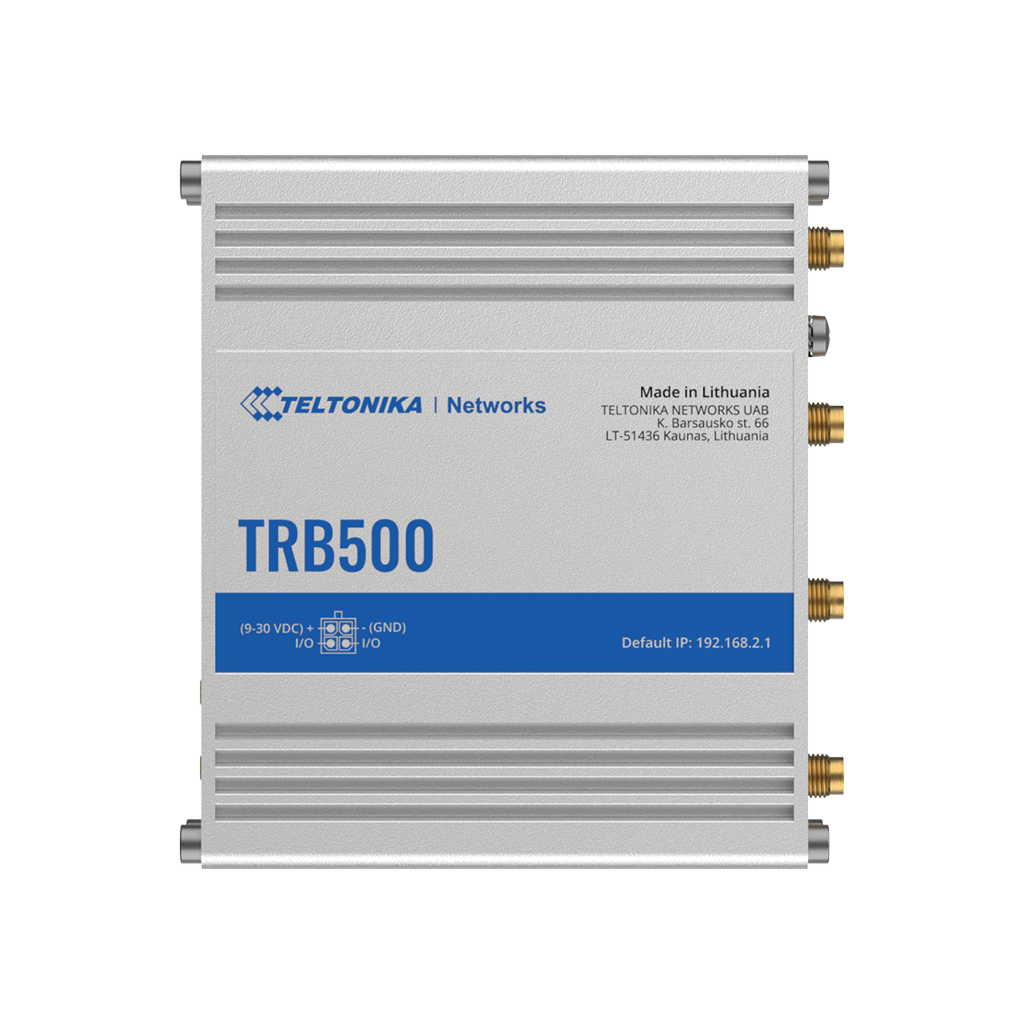

Teltonika TRB500
£342.00
The Teltonika TRB500 is an industrial IoT Gateway with 4G/5G LTE Cat 20, featuring Gigabit Ethernet, Inputs/Outputs, and advanced software like SMS control, Firewall, and VPN support. Designed for industrial use, it offers robustness and features like Remote Management. The TRB500 is ideal for mission-critical IoT applications requiring fast, stable internet, supporting MIMO antenna connections for strong signals. It can serve as a WAN input for network routers, offering advanced security features and easy configuration through RutOS web interface with default Auto-APN configuration for quick setup.
Description
Teltonika TRB500 Features
Mobile
- Mobile module – 5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4×4 MIMO), 900/600 Mbps UL (2×2); 4G (LTE) – LTE Cat 20 2.0Gbps DL, 200Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL
- Status – IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
- SMS – SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
- USSD – Supports sending and reading Unstructured Supplementary Service Data messages
- Black/White list – Operator black/white list (by country or separate operators)
- Band management – Band lock, Used band status display
- APN – Auto APN
- Bridge – Direct connection (bridge) between mobile ISP and device on LAN
- Passthrough – Gateway assigns its mobile WAN IP address to another device on LAN
Ethernet
- 1 x ETH port, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
Network
- Routing – Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
- Network protocols – TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)
- VoIP passthrough support – H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
- Connection monitoring – Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
- Firewall – Port forward, traffic rules, custom rules
- Firewall status page – View all your Firewall statistics, rules, and rule counters
- Ports management – View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
- Network topology – Visual representation of your network, showing which devices are connected to which other devices
- Hotspot – Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes and option to upload and download customised hotspot themes
- DHCP – Static and dynamic IP allocation, DHCP Relay
- DDNS – Supported >25 service providers, others can be configured manually
- Network backup – Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
- SSHFS – Possibility to mount remote file system via SSH protocol
Security
- Authentication – Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block
- Firewall – Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
- Attack prevention – DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
- VLAN – Port and tag-based VLAN separation
- Mobile quota control – Mobile data limit, customizable period, start time, warning limit, phone number
- WEB filter – Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
- Access control – Flexible access control of SSH, Web interface, CLI and Telnet
VPN connectivity
- OpenVPN – Multiple clients and a server can run simultaneously, 27 encryption methods
- OpenVPN Encryption – DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
- IPsec – IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
- GRE – GRE tunnel, GRE tunnel over IPsec support
- PPTP, L2TP – Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
- Stunnel – Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
- DMVPN – Method of building scalable IPsec VPNs
- SSTP -SSTP client instance support
- ZeroTier – ZeroTier VPN client support
- WireGuard – WireGuard VPN client and server support
- Tinc – Tinc offers encryption, authentication and compression in it’s tunnels. Client and server support.
